Compliance
Information for Stratus Products (R002G)
This document provides compliance information for the following Stratus® products:
·
ftScalable
Storage systems
·
ftServer®
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems
·
ftServer
V 2404, V 4408, V 6408, V 6512, V 2608, V 4612, V 6616, V 6624, V 6728, V 2810,
V 4820, and V 6832 systems
·
ztC
Edge 100i, 110i, 200i, and 250i systems
·
ztC
Endurance 31x0, 51x0, and 71x0 systems
NOTICE:
The models described in this document may
not conform to the compliance standards for all the countries listed in "Electronic Interference, Immunity, Safety,
and Noise Level Standards Compliance." For specific compliance information,
contact your product manager.
Electronic Interference, Immunity, Safety, and Noise Level Standards Compliance
The Stratus products listed in this section comply with the electromagnetic interference (EMI), immunity, safety, and noise regulations listed in this document. All necessary agency labels are on the product.
NOTES:
1.
All
systems must be configured with the components listed and described in the
product configuration specifications. Deviations from this list of components
will void agency certification.
2.
You
must install all wiring, including power and communications cables, in
compliance with local and national electrical code (in the United States,
national electrical code NFPA 70).
3.
The
connection cable, power cord, AC adapter, and other devices that are bundled
with these products are dedicated to Stratus products. Devices and cables that
do not have the Electrical Appliance and Material Safety Act certification
(indicated as PSE) cannot be used for
devices other than Stratus products.
本製品およびオプション製品（ストラタス製品）に同梱された接続ケーブル、電源コード、ＡＣアダプターなどは、ストラタス製品の専用となっています。電気用品安全法の認定(PSEと表記)がない機器やケーブルは、ストラタス製品以外の機器に使用することはできません。
また、ストラタス製品に接続される接続ケーブル、電源コード、ＡＣアダプターなどは、必ず同梱された専用品またはストラタスの指定品をご使用ください。それ以外のものを使用することは、故障や火災の原因になることがあります。
4.
All EMC
emissions compliance tests are performed at a third-party certified test
laboratory.
5.
Changes
or modification to the product could void the user's authority to operate the
equipment.
This document does not include products that Stratus no longer ships. For information on products not listed in this document, contact Engineering Manager Takeyoshi Horie.
Table 1: Electronic Interference,
Immunity, Safety, and Noise Level Standards Compliance
|
|
|
ftScalable Storage |
|
|
|
ztC Endurance |
|
Australia/New Zealand |
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge 100i, 110i, 200i,
and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
|
Canada |
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge 100i, 110i, 200i, and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
|
China |
GB17625.1-2012; GB/T9254-2008(Class A): GB4943.1-2011 CCC Qualification (EMC/Safety) |
ftScalable
Storage systems |
ftServer
2810, 4810, 6810, 29x0, 49x0, and 69x0 systems |
N/A |
ztC Edge 100i, 110i, 200i, and 250i systems |
N/A |
|
Eurasian Economic Union |
Technical regulations of the Customs Union TR TC 004/2011 on safety of low-voltage equipment |
N/A |
ftServer 29x0, 49x0, and 69x0 systems |
N/A |
ztC Edge 110i systems |
N/A |
|
Technical
regulations of the Customs Union TR TC 020/2011 Electromagnetic compatibility
of technical means |
||||||
|
European Union |
ftScalable
Storage systems |
ftServer
29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge 110i, 200i, and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
|
Japan |
|
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge 100i, 110i, 200i, and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|

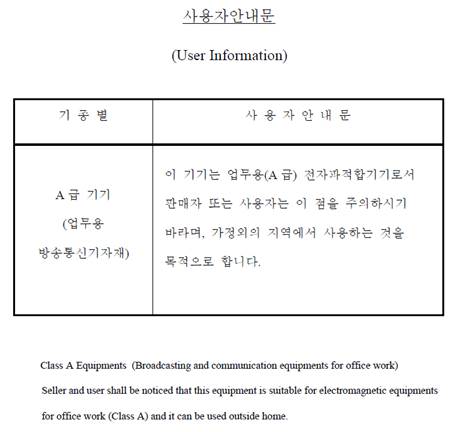

South Korea |
|
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
N/A |
ztC Edge
110i systems |
ztC
Endurance 31x0, 51x0, and 71x0 systems |
|
KN32, KN35, KCC Class A, Technical Requirements for EMI, Safety for ITE |
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge 100i and 110i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
|
|
||||||
|
Taiwan |

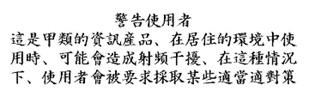

警告使用者： 此為甲類資訊技術設備，於居住環境中使用時， Warning
users: This is
Class A information technology equipment. When used in a residential
environment, it may cause radio frequency disturbance. In this case, the user
will be required to take some appropriate countermeasures. |
ftScalable Storage systems |
ftServer 2810, 4810, 6810, 29x0, 49x0, and 69x0 systems |
N/A |
N/A |
N/A |
|
United States |
FCC CFR47, Part 15 Class A,
Code of Federal Regulations, Radio Frequency Devices: |
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V 2404, |
ztC Edge 100i, 110i, 200i, and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
FCC Statement: This equipment has been tested and found to comply
with the limits for a Class A digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause harmful interference,
in which case the user will be required to correct the interference at his
own expense. |
||||||
|
UL 60950-1, Safety of
Information Technology Equipment |
ftScalable
Storage systems |
ftServer
28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
N/A |
ztC Edge 100i, 110i, 200i, and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
|
Efficiency Level Compliance:
Level VI Efficiency Standard, Department of Energy (DOE), External Power
Supply |
N/A |
N/A |
N/A |
ztC Edge 100i, 110i, 200i, and 250i systems |
ztC Endurance 31x0,
51x0, and 71x0 systems |
|
|
ENERGY STAR® Note: As
defined by the EPA ENERGY STAR Program Requirements for Computer Servers,
Tier 1 requirements, this server is defined as a “Fully Fault Tolerant
Server.” Presently there are no defined requirements, and this category of
servers is ineligible to receive an ENERGY STAR rating. As such there are no
sales restrictions for local or federal agencies. |
N/A |
ftServer 28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
N/A |
N/A |
ztC Endurance 31x0, 51x0, and 71x0 systems |
Toxic and
Hazardous Substances and Elements Disclosure
This section provides information about toxic and hazardous substances and elements.
Table 2: Toxic and Hazardous
Substances and Elements
|
|
|
|
|
|
|
ztC Endurance |
|
Lithium Battery Warning |
W A R N I N G The lithium battery contains perchlorate material. Special handling
may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate. A V E R T I S S E M E N T La batterie au lithium contient des
matières au perchlorate. Une manipulation spécifique peut s’appliquer. Voir
le site www.dtsc.ca.gov/hazardouswaste/perchlorate.
|
ftScalable
Storage systems |
ftServer 28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge
100i, 110i, 200i, and 250i systems |
ztC
Endurance 31x0, 51x0, and 71x0 systems |
|
Lithium Battery Product Safety Data Sheet |
See the product safety data sheet located at https://industrial.panasonic.com/cdbs/www-data/pdf/AAA4000/ast-ind-183070.pdf. |
N/A |
ftServer 29x0, 49x0, and 69x0 systems |
ftServer V
2810, |
N/A |
ztC Endurance 31x0, 51x0, and 71x0 systems |
|
Computer / Recycling |
Please inform the nearest Stratus distributor as soon as possible for suitable solutions in case computers require maintenance or repair; or for recycling in case computers are out of order. |
ftScalable
Storage systems |
ftServer 28x0, 48x0, 68x0, 29x0, 49x0, and 69x0 systems |
ftServer V
2404, |
ztC Edge 100i,
110i, 200i, and 250i systems |
ztC Endurance
31x0, 51x0, and 71x0 systems |
The following
table provides the toxic and hazardous substances and elements disclosure for
the People's Republic of China. The information in this table applies to
the following Stratus products:
·
ftScalable
Storage systems
·
ftServer
29x0, 49x0, and 69x0 systems
·
ztC
Edge 100i, 110i, 200i, and 250i systems
Table 3: People's Republic of
China: Toxic and Hazardous Substances and Elements
The
following table provides the toxic and hazardous substances and elements
disclosure for the People’s Republic of China. The information in this
table applies to ztC Endurance 31x0, 51x0, and 71x0
systems.
产品中有害物质的名称及含量
(Restricted Substances and Content in Products)
Table 4: People's Republic of
China: Toxic and Hazardous Substances and Elements (ztC Endurance systems)
|
部件名称 (Part Name) |
有害物质 (Hazardous Substances) |
|||||
|
铅（Pb） |
汞（Hg） |
镉（Cd ） |
六价铬
（Cr(VI) ） |
多溴联苯（PBB） |
多溴二苯醚（PBDE） |
|
|
电路板 (Circuit
Board) |
X |
○ |
○ |
○ |
○ |
○ |
|
风扇 (Fan) |
X |
○ |
○ |
○ |
○ |
○ |
|
机箱 (Chassis) |
○ |
○ |
○ |
○ |
○ |
○ |
|
电源 (Power
Supply) |
X |
○ |
○ |
○ |
○ |
○ |
|
机箱附件 (Accessories) |
○ |
○ |
○ |
○ |
○ |
○ |
|
本表格依据SJ/T
11364 的规定编制。 ○: 表示该有害物质在该部件所有均质材料中的含量均在GB/T 26572 规定的限量要求以下。 (Indicates that the
content of the hazardous substance in all homogeneous materials of this part
is below the limit requirements specified in GB/T 26572) X : 表示该有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 规定的限量要求。 (Indicates that the
content of the hazardous substance in at least one homogeneous material of
this part exceeds the limit requirements specified in GB/T 26572) |
||||||

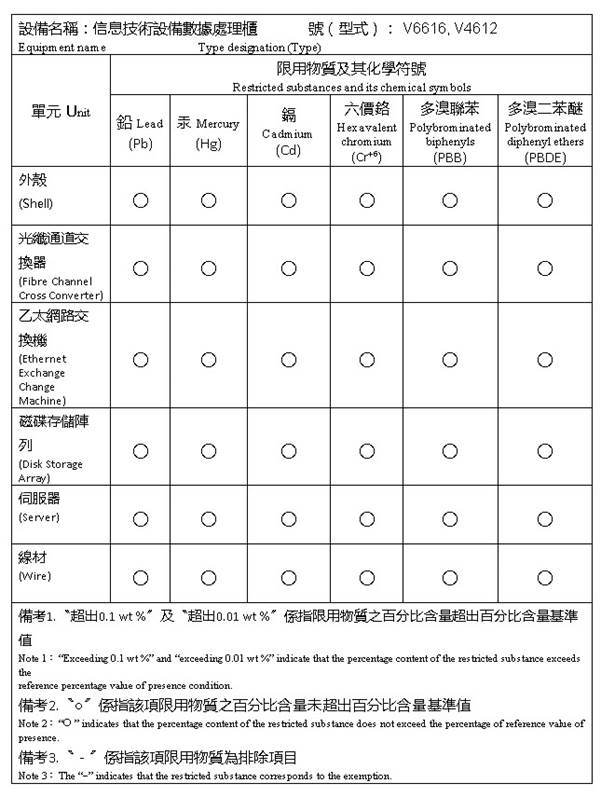

The following table provides the toxic and hazardous substances and elements
disclosure for Taiwan.
The information in this table applies to ftServer V 4612 and V 6616 systems.
Table 5: Taiwan: Toxic and
Hazardous Substances and Elements
The
following table provides the toxic and hazardous substances and elements disclosure
for Taiwan. The information in this table applies to ztC Endurance 31x0, 51x0,
and 71x0 systems.
限用物質含有情況標示聲明書
Restricted Substance Content Statement
Table 6: Taiwan: Toxic and
Hazardous Substances and Elements (ztC Endurance systems)
|
設備名稱: Server 型號：7100, 5100, 3100 |
||||||
|
單元 Unit |
限制物質及其化學符號 |
|||||
|
鉛 （Pb） |
汞 （Hg） |
鎘 （Cd ） |
六價鉻（Cr+6） |
多溴聯苯（PBB） |
多溴二苯醚（PBDE） |
|
|
外殼 (Enclosure) |
○ |
○ |
○ |
○ |
○ |
○ |
|
電路板組件 (Circuit board components) |
－ |
○ |
○ |
○ |
○ |
○ |
|
電線/連接器 (Wires, Connectors) |
－ |
○ |
○ |
○ |
○ |
○ |
|
電源設備 (Power Supply) |
－ |
○ |
○ |
○ |
○ |
○ |
|
配件 (Accessories) |
○ |
○ |
○ |
○ |
○ |
○ |
|
備考1.〝○〞係指該項限用物質之百分比含量未超出百分比含量基準值。 (Means that the percentage of
the restricted substance does not exceed the percentage level of the
reference value). 備考2.〝－〞係指該項限用物質為排除項目。 (Means that the restricted substance
is an excluded item). |
||||||
|
|
||||||
R002G-08;
Updated November 15, 2023
|
Stratus Technologies Ireland Ltd. |
